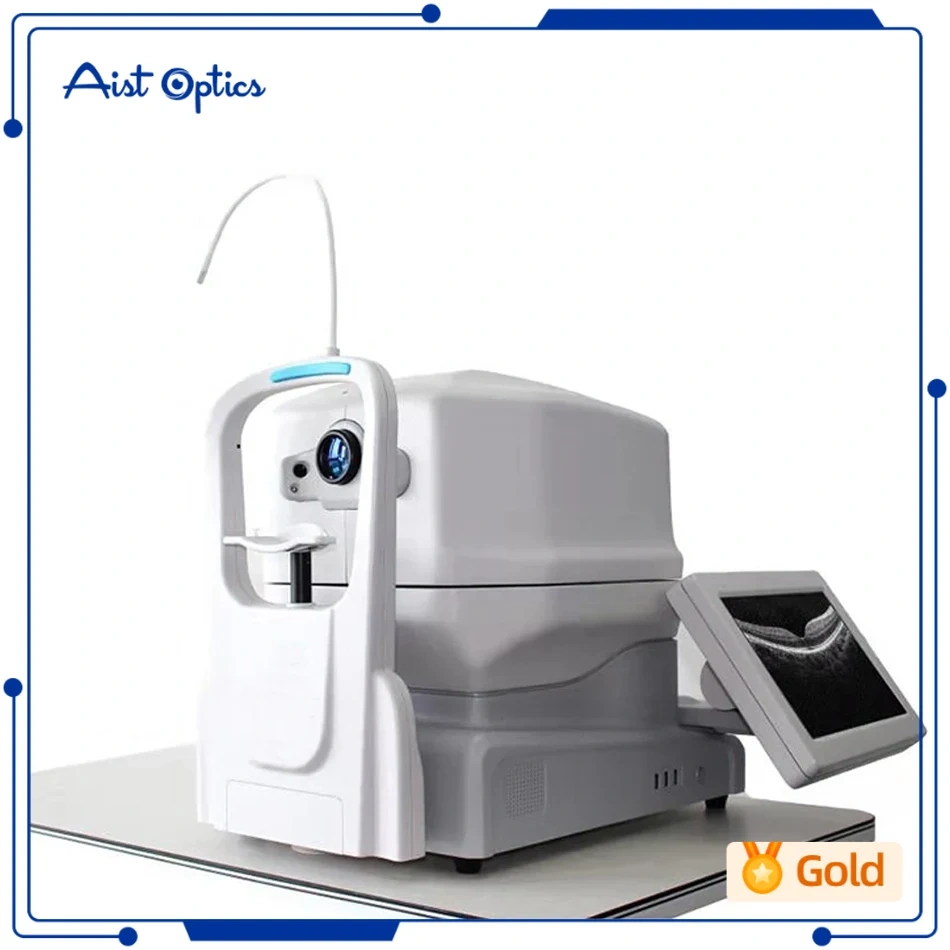

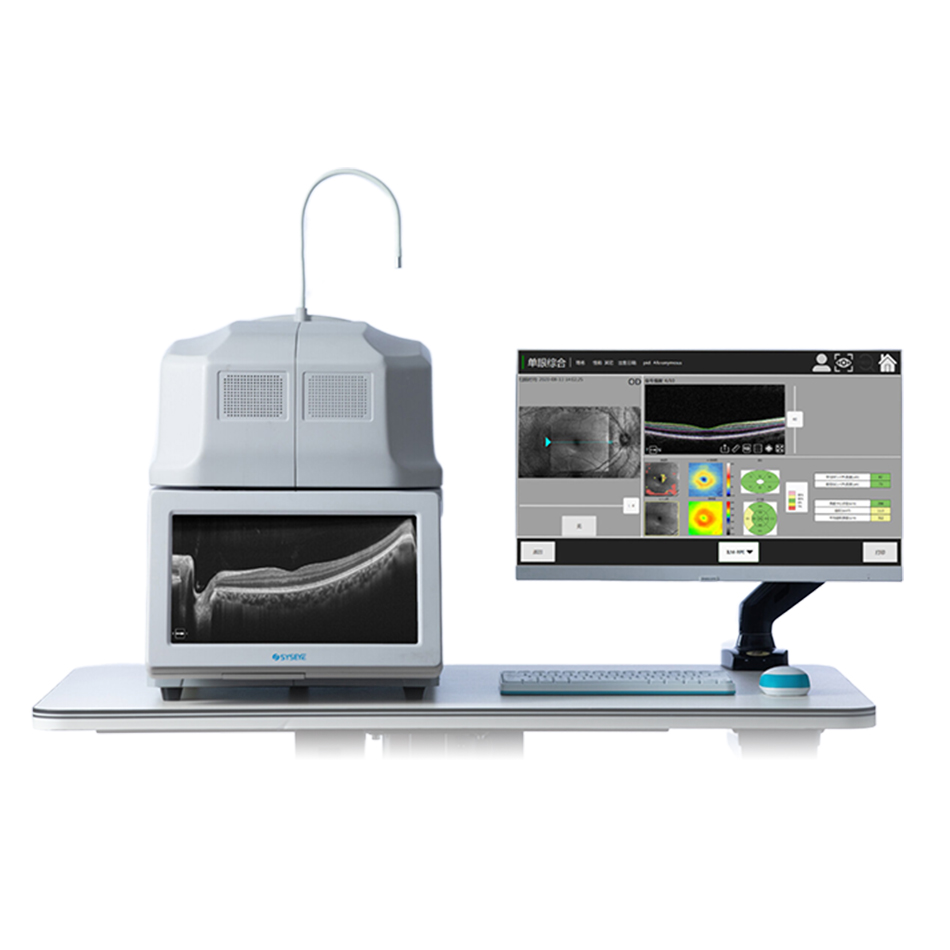

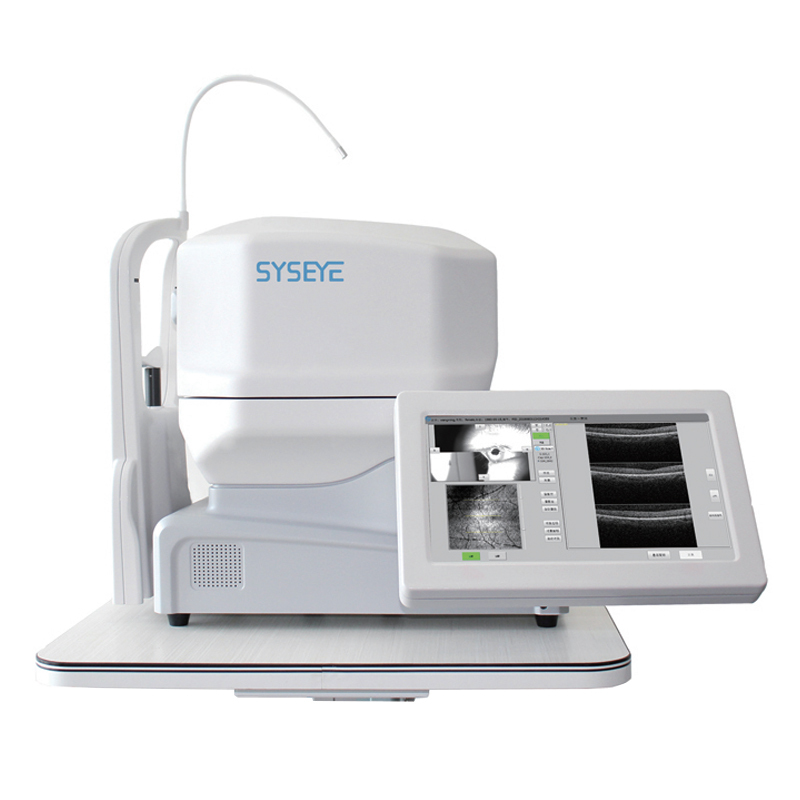

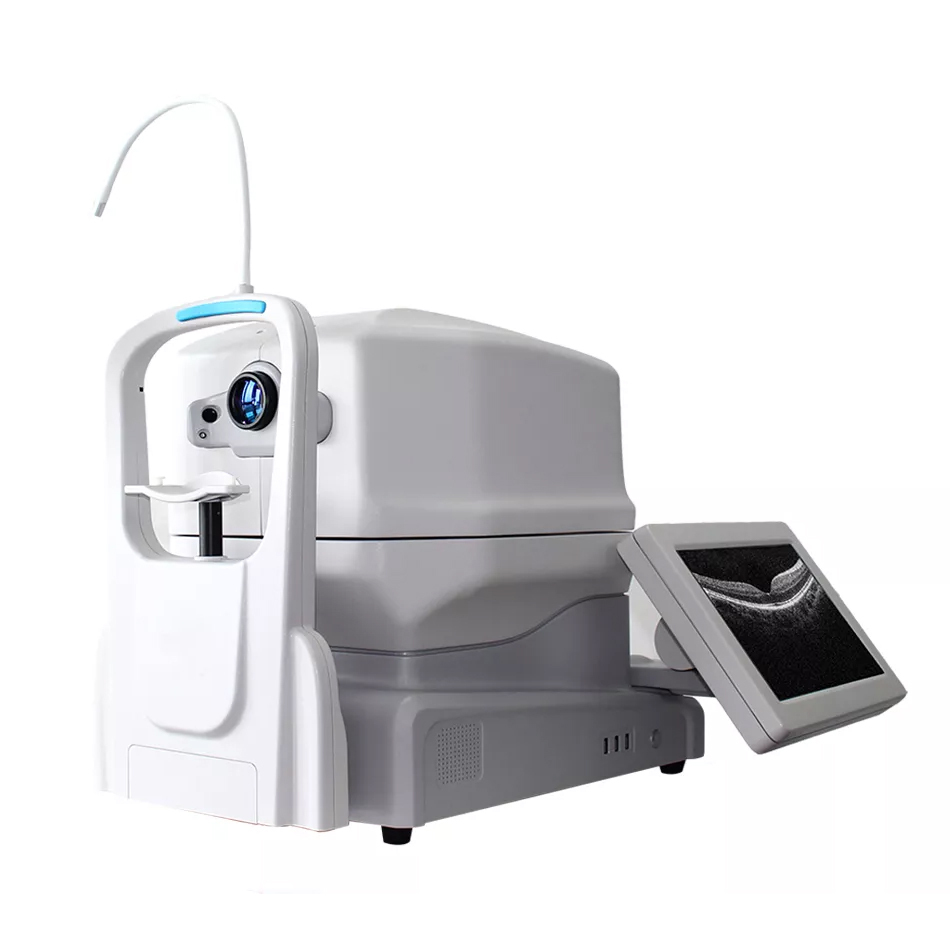

FeatureOCT RetiView 500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus, providing important diagnostic basis and treatment for eye diseases, especially fundus diseases, glaucoma screening, diagnosis, follow-up and efficacy evaluation, a high-resolution, non-contact, non-invasive imaging technique for easy and fast examination.
Fully automatic
Fully automatic one-key operation, automatic eye tracking, automatic tomography of the macula, optic disc and other parts
Comprehensive measurement analysis tools
• Up to 14 types of analysis, accurate and comprehensive analysis of the fundus
• The use of OCT to measure macular hole size before eye surgery allows doctors to objectively assess the effect of macular hole surgery, and the changes in diabetic macular edema can be accurately and predictably measured by OCT
• Possibility to diagnose fine vitreomacular traction and provide accurate pre- and post-operative macular thickness assessment
• Can accurately measure subtle changes in retinal structure and make precise analysis of the retinal nerve fiber layer
Provide more detailed analysis data through precise analysis of ganglion cell layer-inner plexiform layer
Glaucoma analysis function, providing more accurate optic disc area, cup-to-disk ratio and other data services
Radial analysis of the macula for richer and more accurate data
Rich image editing software
Case Reports
Monocular comprehensive analysis, optic disc and RNFL analysis
| Methodology |
Spectral domain OCT |
| Axial resolution |
≦6um(in tissue) |
| Transverse resolution |
≦20(in tissue) |
| Scan depth |
≥2.5mm(in air) |
| Scan range |
6-12mm |
| Scan speed |
≥24，000A-scan/sec，up to 36，000A-scan/sec |
| Scan mode |
3D(Macular&Optic Disk) ，HD，Raster，Circle，Cross |
| Analysis mode |
Up to 7 retinal layers segmentation，Macular analysis mode，RNFL&Optic Disk analysis mode，Glaucoma analysis mode and Progress analysis for follow-up examination. |
| Fundus image |
OCT en face |
| Focus adjustment |
-15D to+15D |
| Pupil diameter |
≥3mm |
| OCT light source |
840nm SLD |
| Operation |
13.3inch touchscreen，optional external mouse or keyboard |
| Power supply |
100-240V，50/60HZ |
| Dimensions |
497x395x490mm |
| Weight |
34kg |
