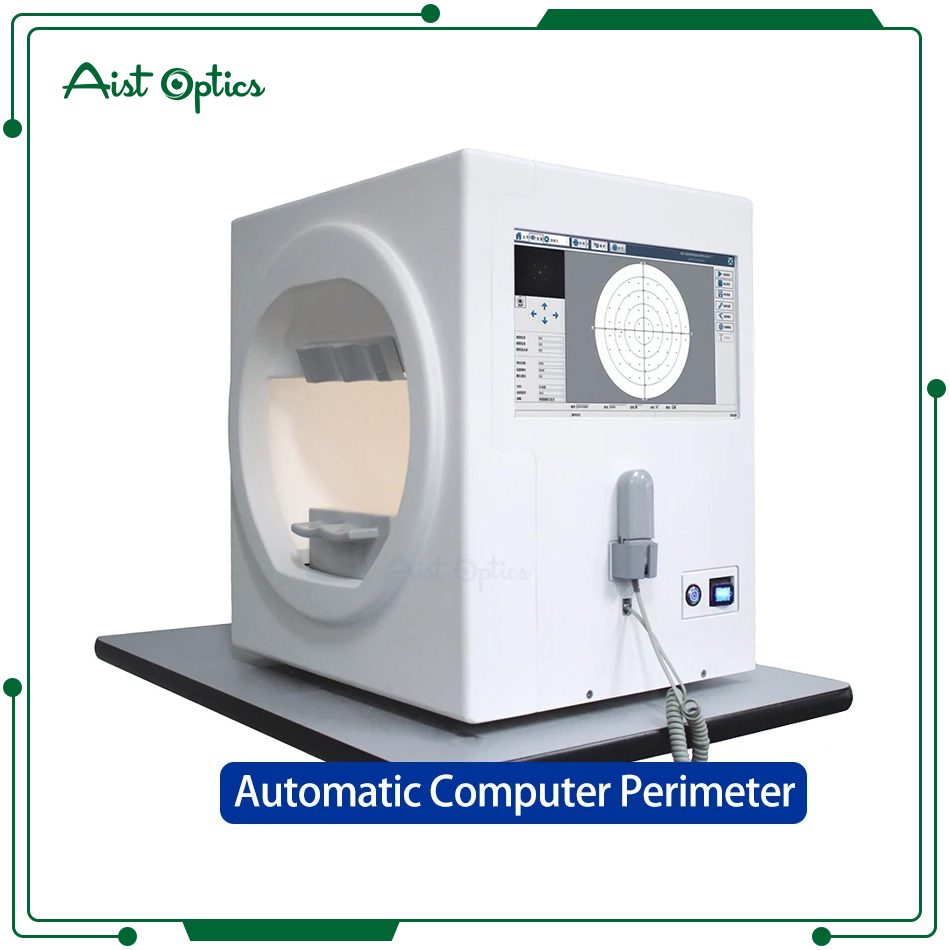

Automatic computer peremeter

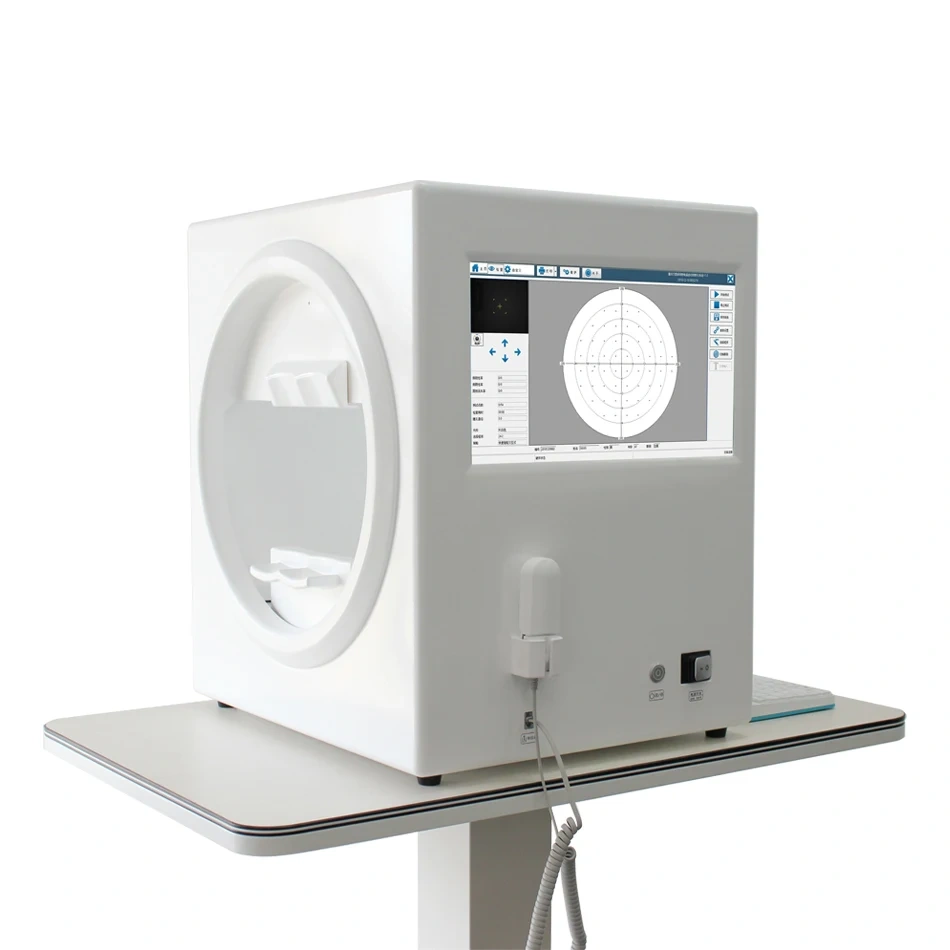

The Bio-1000 plus automated computer perimeter absorbs the advantage of international advanced perimetry device. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advantage configuration, comprehensive software inspection categories, it provide international and strictly in accordance with international Goldman standard, it provide scientific means for glaucoma,fundus disease, visual pathway injury and neurological disease.
Multiple fixation monitoring programs to ensure high reliability
Comprehensive real-time monitoring, HeiJji-krakau physiological blind spot monitoring, gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection
Abundant inspection modes for both accuracy and speed
• Rich threshold inspection and suprathreshold inspection modes to detect earlier visual field defects
• The scientific and intelligent interactive inspection strategy improves your work efficiency. It only takes 3 minutes to inspect the 30°field of view.

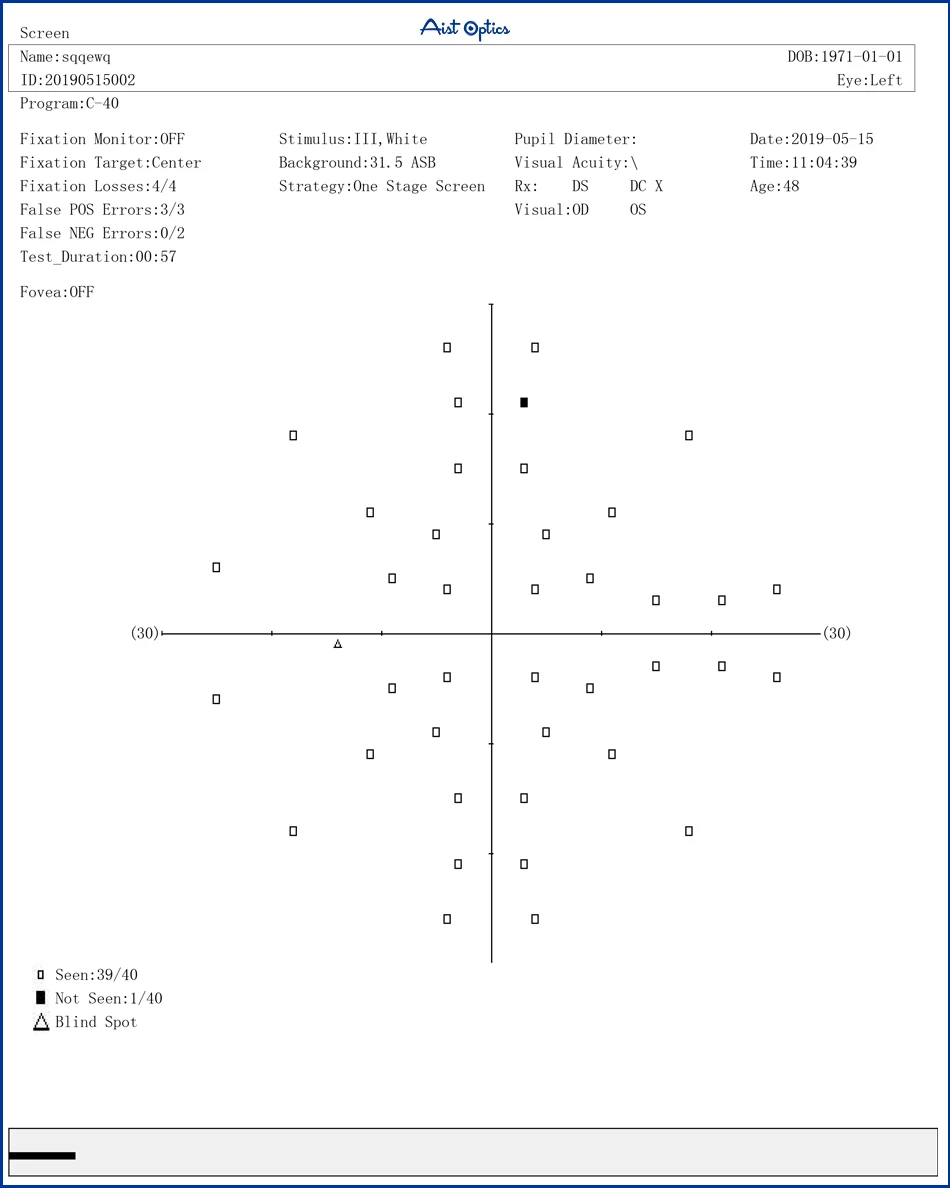

Comprehensive Analysis Software
• 6 kinds of analysis: reliability analysis, single-report analysis, multi-report analysis, glaucoma half-field analysis, glaucoma progression analysis, VFI visual field index analysis;
• Half-field analysis designed for glaucoma, making glaucoma diagnosis easier
• Analysis of glaucoma progression, where very subtle progression is more visible and continues to suggest new progression
.
.
.
.
.
|
Inspection range
|
90°
|
|
Inspection distance
|
30CM
|
|
Background light brightness
|
White 31.5asb
|
|
Visual target brightness
|
1asb---10000asb
|
|
Visual target size
|
GoldmannⅢ
|
|
Visual target interval time
|
200ms
|
|
Visual target interval time
|
Standard or adjustment according to patient reflection
|
|
Threshold test model
|
Center 5º-16,center10º-68,24-2,30-2,30º-60º,nasal step
|
|
Upper Threshold test model
|
30º-40 , 30º-76,P-60, 60º-81, 60º-120,1 90º-135 nasal side
|
|
Special detection strategy
|
Esterman monocular,Esterman binocular ,user-customized test,
|
|
150º driver monocular fast detection,150º driver monocular standard detection ,upper 36°detection,blind spot detection, 150ºhorizontal straightness detection
|
|
Pupil size test
|
Automatic
|
|
Fixation monitoring
|
Blind spot monitoring ,eye position eye position deviation alarm,eye deviation curve
|
|
Environment light detection
|
Automatic
|
|
Analysis software
|
Reliability analysis,single vision report,triple visionreport,GPA half vision analysis,
|
|
GPA glaucoma developing analysis ,VFI vision index analysis
|
|
Operation system
|
Win7 above
|
|
Others
|
|
Size
|
412mm(length)* 497mm(width)* 513mm(height)
|
|
Weight
|
17kg
|
|
Power
|
100-240V ,50-60Hz
|
