2.Professional optics with CCD
3.Support for imaging & refractive devices
4.Advanced image processing tools and management system
5.Advanced query possibilities on database
6.It is possible to use previously obtained data as a starting point for further operations.
7.The windows for captures and for viewing images are TAB based,which provide a good overview
8.Most important feature is the creation of advanced queries in the patient database.
9.Professional software with video function
10.Background illumination system;
11.Flash function
12.DICOM compliant


|
Model |

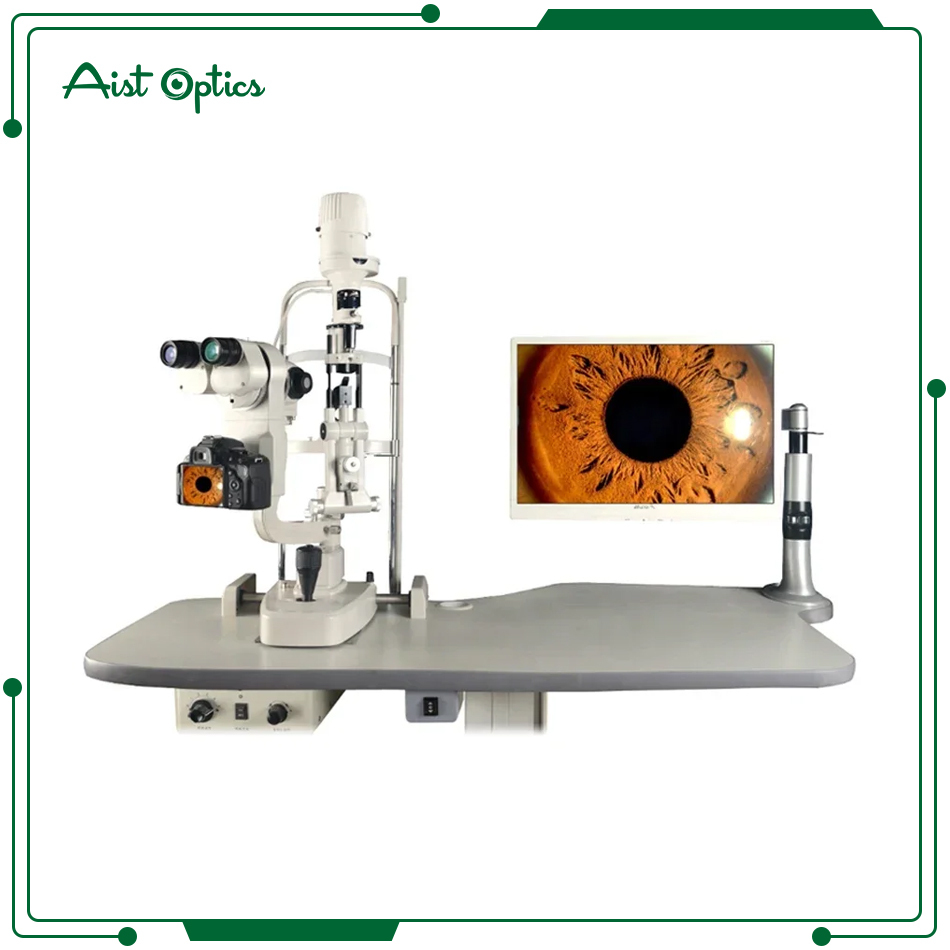

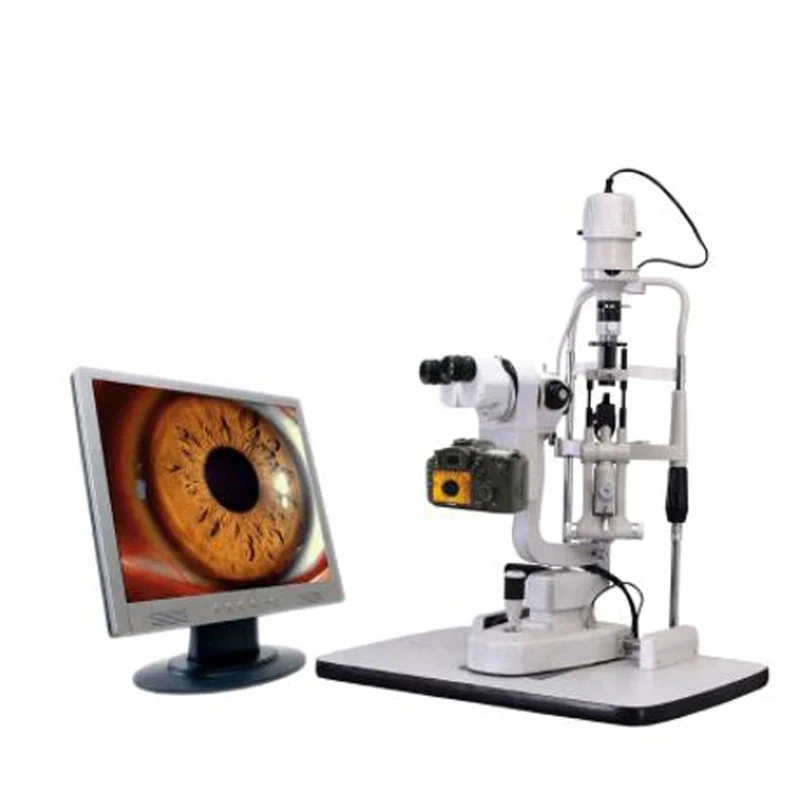

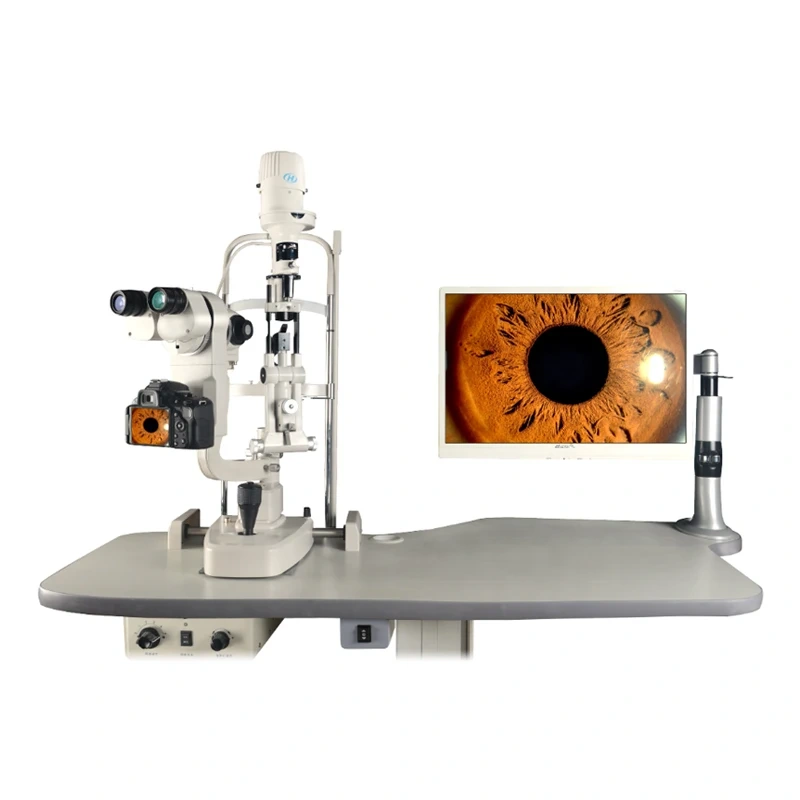

SLM-3ER |
|
Microscope Type |
Galileo Parallel |
|
Magnification Change Way |
Drum Five Magnifications |
|
Digital System |
Nikon D 5200 with high definition DSLR24.1 Mega Pixels |
|
Background Illumination |
With |
|
Total Magnifications |
6x,10x,16x,25,40x |
|
Eyepiece |
12.5x |
|
Diopter Adjustment |
-5D~+5D |
|
Slit Width |
0-14mm continuous |
|
Slit Height |
1-14mm continuous |
|
Slit Angle |
0-180°adjustable |
|
Light Spot Diameter |
0.2,1,2,5,10,14mm |
|
Filters |
Heat Absorption, Yellow, Redfree (green), Cobalt Blue |
|
Input Voltage |
110V/220V (±10%) |
|
Fixation |
Red LED |
|
Illumination Bulb |
LED |
|
Light Source |
High Light Source |
