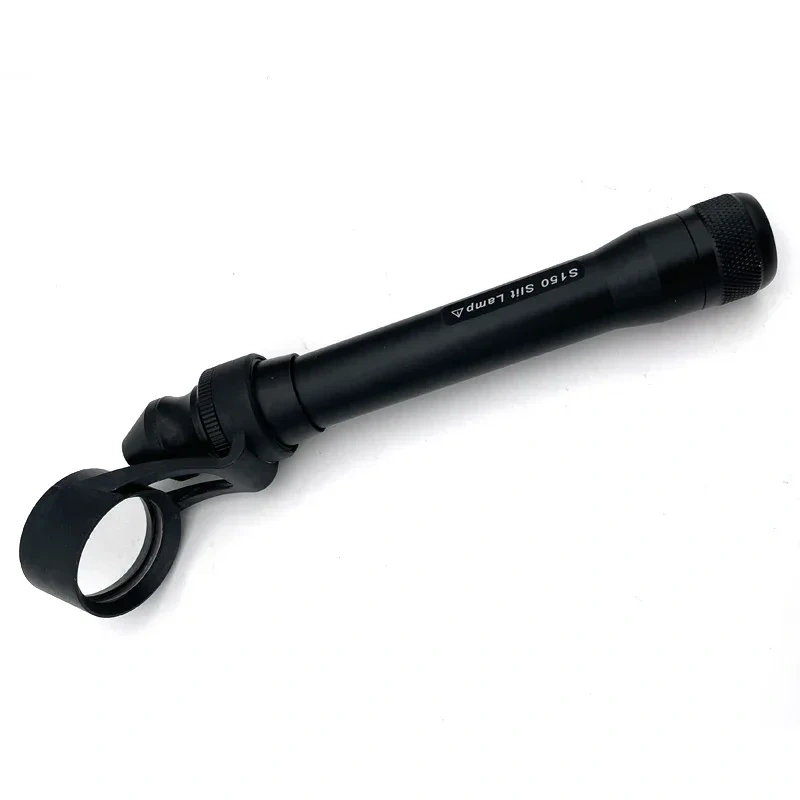

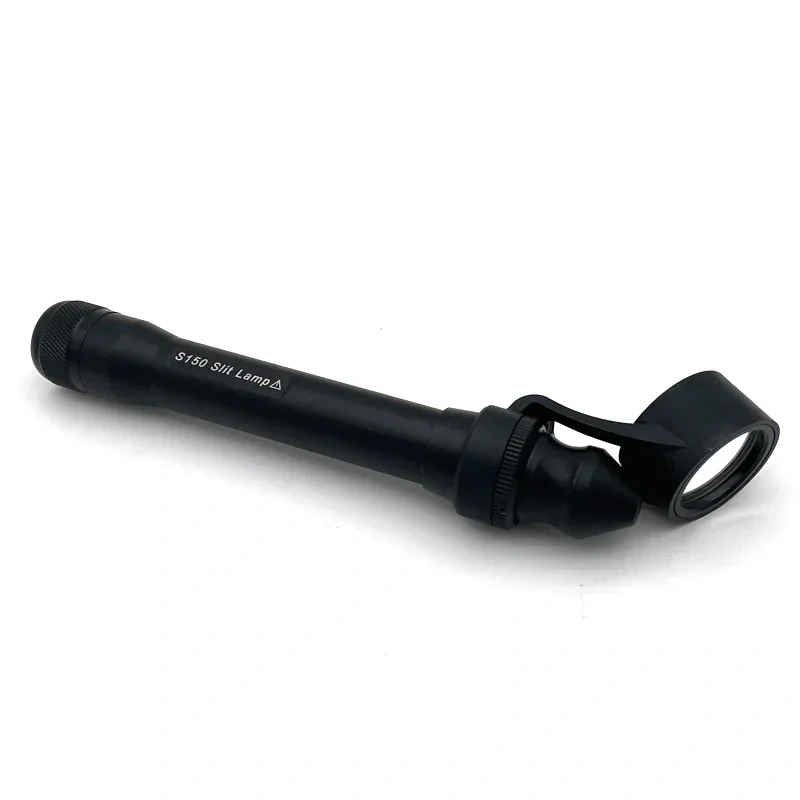

S150 Slit Lamp

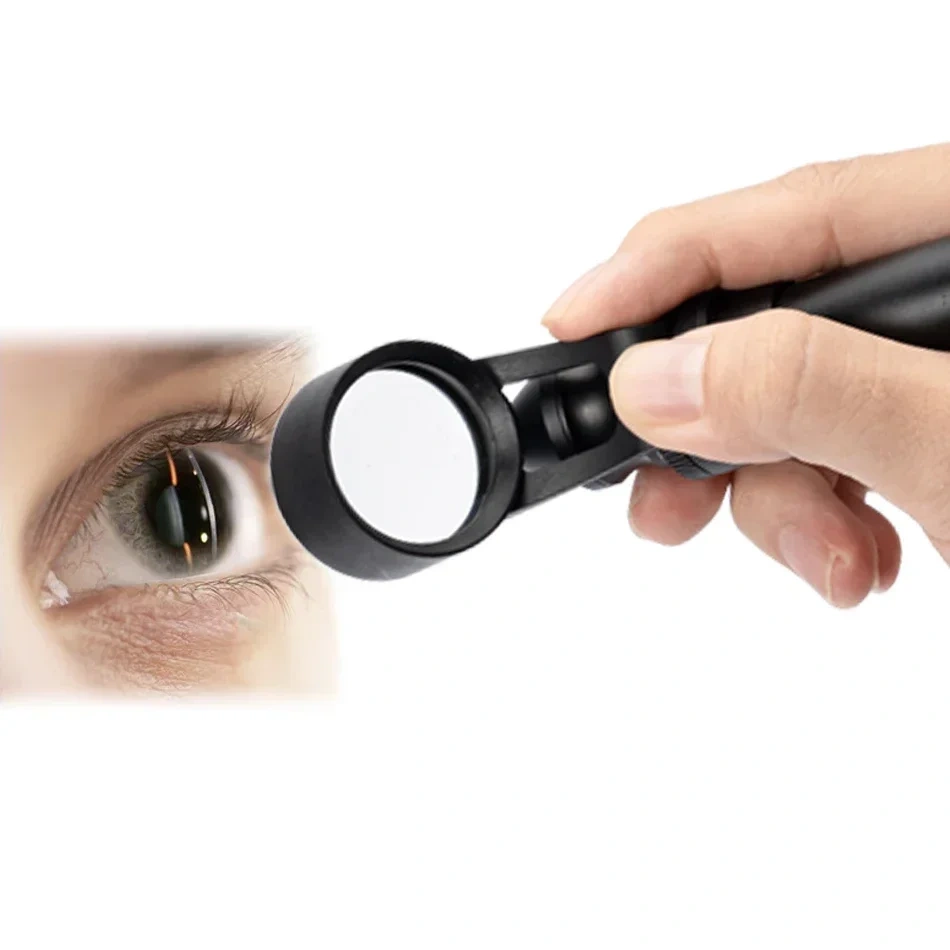

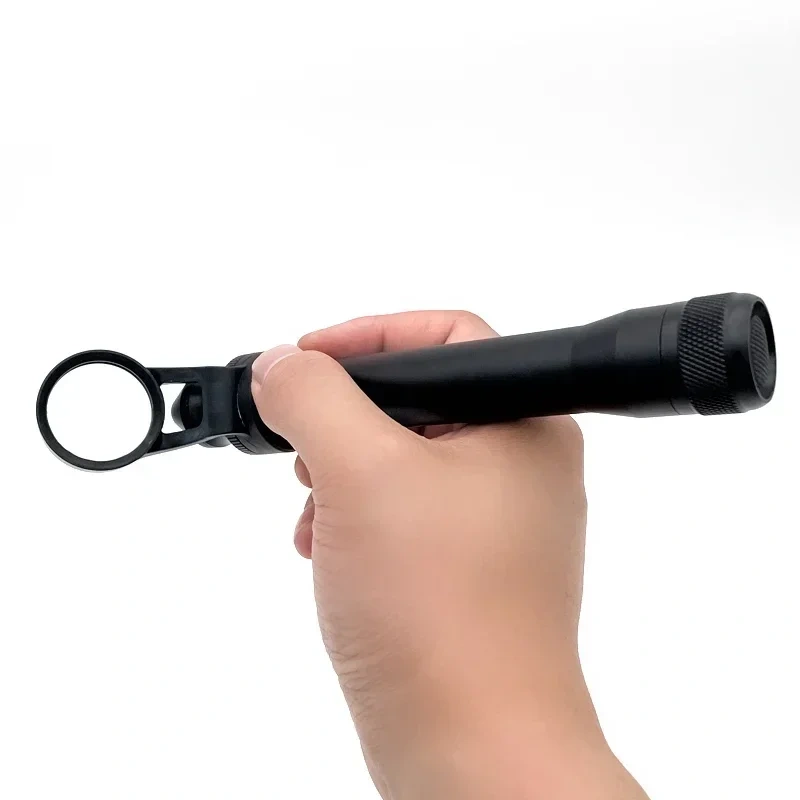

1.Ultra-portable: the ultra-portable is an excellent diagnostic instrument for examination of anterior segment structures and ocular abnormalities. Its easy-to-operate optical system produces a high-brightness,continuously adjustable slit image ideal for prediatric and geriatric setting,emergency department screenings,ward rounds,beside exmination,post-op evaluations and mission work;
2.LED illumination: the first and the only portable slit lamp in the world applying LED illumination system.The most prominent advantage of our LED illumination system gives examiner the clearest image without glare;
3.Comfortable using experience: The low heat radiation from our LED lamp makes the most comfortable examine experience for the patient;
4.Sharpest Slit: With the blade imaging system S150 gives equally sharpest slit as the best classic slit lamp in the world;
5.No need to replace illumination lamp: The LED lamp used in S150 portable slit lamp is rated 20,000 hours at full power. Its life time is almost 10 times longer than normal halogen lamp;
6.Power-saving: S150 can work for long hours without changing batteries.

Operation:

1. Press the Power Switch to turn the slit lamp on/off;
2. Loosen the Locking Screw;
3. Twist the Lamp Body while holding the Magnifier Bracket still till the slit is in the required angle;
4. Push or pull the Lamp Body while holding the Magnifier Bracket still to set the Magnifier into a position comfortable for observation;
5. Fasten the Locking Screw;
6. Pull the Lamp Head back and forth for adjusting the width and the length of the slit, as well as the intensity of the light.
