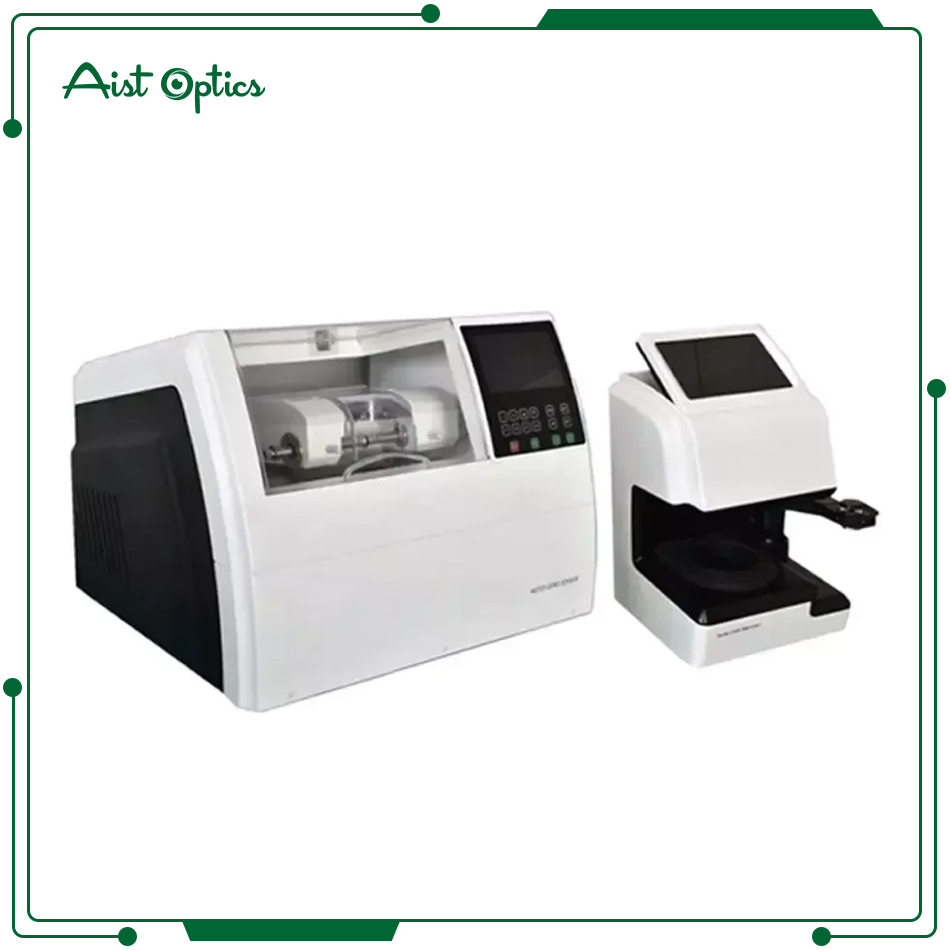

SJG-800 Auto Lens Edger

1.Avarious of materials of the lens can be processed, rapid edging to be molding .

2.Bevel or platband can be polished .

3.Various grinding pressure meet the demands of different lenses.

4.On-line function .

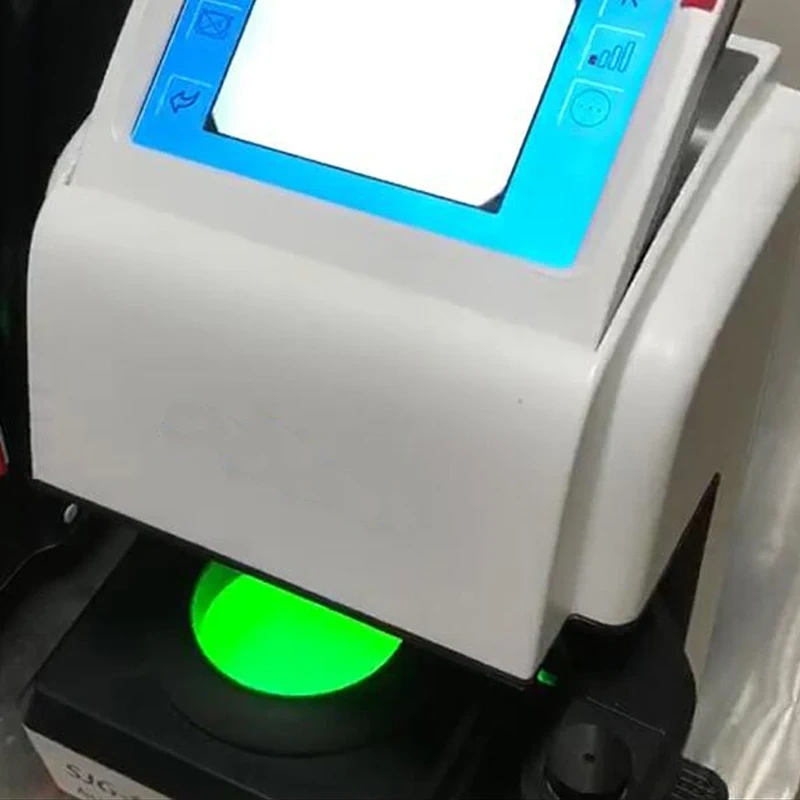

Tracing system

1.set the optical scan, the center of positioning as one .

2.It takes 0.5 seconds to get the frame shape of the frame

3.Real-time imaging guidance confirms whether the best center position is reached.

4.Automatically eliminate the lens degree, prism and artificial parallax effect

5.High resolution 1280*800 tru color 7 inch touch screen

6.At the same time connect two RS8000 automatic milling machine composed ofprocessing center

7.Simple operation , low failure , maintenance-free.

Auto lens edger Technical Data

Dimesion :625mm*510mm*510mm

Weight :49kg

Voltage :AC 220V/110V ,  50/60Hz.

Power :550W

Lens size range :Diameter 22-80mm

Clamping pressure: Third gear adjustable

Wheel diameter :100mm

Auto lens scanner Technical Data

Dimension:240mm*180mm*130mm

Weight:5kg

Voltage:AC 220V/110V    50/60Hz

Power :60W

Screen tilt angle :20°-100°

Touch screen :7” capacitive screen

Quantity of connecting with the main machine:2 unit.
